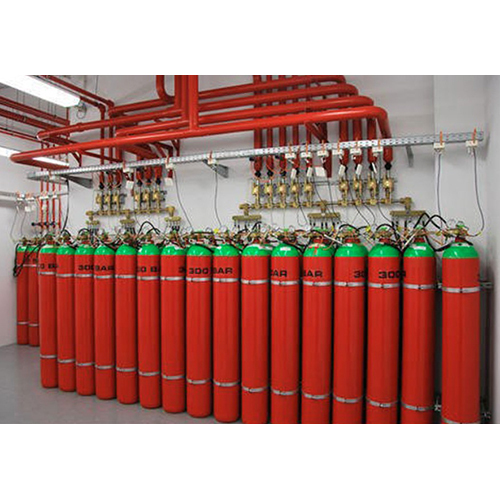

Fire Fighting Equipment

• Application
• Server rooms, data centers, control rooms, electrical cabinets, communication facilities, archives, and storage areas

• Capacity
• Varies per cylinder, common sizes are 40L, 67L, 80L, 100L, and more

• Coating Type
• Corrosion-resistant powder coating

• Connectivity Type
• Integrated with fire detection and building management systems

• Control Type
• Automatic and manual activation through control panels

• Coverage Area
• Scalable system, typically covers 100 m2 up to 2500 m2 or more

• Diameter
• Standard cylinder diameter typically ranges from 180 mm to 250 mm depending on capacity

• Energy Efficiency Rating
• Not applicable (no continuous energy use)

• Features
• Non-corrosive, rapid discharge, minimal residue, ozone-friendly, safe for electronics

• Fire Class
• Class A (solids), Class B (flammable liquids), Class C (electrical fires)

• Fire Extinguisher Type
• Clean agent gaseous extinguisher (FM-200, Novec 1230, Inergen, CO2)

• Installation Type
• Fixed, wall-mounted or floor-standing modular installation

• Max Flow Rate
• Designed for fast agent discharge within 10 seconds

• Mounting Type
• Fixed, modular banked cylinders

• Operating Pressure
• Consistent with storage pressure, 25 bar or 42 bar

• Pressure
• Storage pressure typically 25 bar or 42 bar (varies by gas used)

• Shape
• Cylindrical

• Technology
• Clean agent gaseous fire suppression with automatic detection and control

• Voltage
• 24 V DC (control panel supply)

• Working Temperature
• Typically -20C to 55C

• Application
• Fire safety protection in commercial, industrial, and residential buildings

• Capacity
• Dependent on pump and tank design (e.g., 10,000-100,000 liters tank)

• Coating Type
• Epoxy/polyurethane for corrosion resistance

• Connectivity Type
• Pipe network, with external fire brigade connections

• Control Type
• Manual/automatic valve and control system

• Coverage Area
• Customizable, based on site requirement

• Diameter
• Standard sizes from 80mm to 200mm

• Energy Efficiency Rating
• Not applicable (operated by electric/diesel-driven pumps)

• Features
• Corrosion protection, high reliability, quick response, robust construction

• Fire Class
• Class A, B, C fires

• Fire Extinguisher Type
• Not applicable, system includes hydrants, hoses, and landing valves

• Installation Type
• Floor mounted, wall mounted hydrant points

• Max Flow Rate
• Upto 2850 LPM (litres per minute)

• Mounting Type
• Floor/wall mounting for hydrant outlets

• Operating Pressure
• 7-10 bar

• Pressure
• Normal working pressure 7-10 bar

• Shape
• Cylindrical/horizontal & vertical pipe runs

• Technology
• Wet riser, external hydrant line, automatic/manual operation

• Voltage
• Typically 230V/415V AC for pump operation

• Working Temperature
• Up to 55C
